The unusual aspects of these project are listed in purple lettering below.

Note: remember that you can click on each pictures shown to read more and get a better look at each caps construction.

I could add more current images here, but there is already so many here it would just bog down your browser even more. Rest assure that we are still quite active with these sort of projects. I have been uploading more of our more current projects on my Facebook company profile photo albums.

The Hempleman Cupola Roof (1/17)
We used 1" curved copper pipes over each standing seam for a more dynamic 3D look, which adds a lot of strength to this as well. It also has curved pipe rims across the outer edges.

Click this image to view the 63 photos we had shared with our clients showing them the detailed fabrication process

The Allison Turret & Gazebo Caps
Ely, Nevada
(9/12)
First double vented roof cap/cupola:
This was a pair of solid 20oz copper turret and gazebo roof caps that were custom made for our clients named Mike & Chris Allison in Ely, Nevada for their 4/12 pitch octagon roofs. These roof cap were made 44" wide across the base with a safety hem bent under the bottom edge for strength and better handling during installation. WE also made a set of wood mounting rings that were custom cut and assembled to attach on the roof raising the caps up to allow for the roof venting under the cap's edge as well as there in the middle.

Cost: $2,115 for both caps, crate, and truck freight to NV
They saved around $800 for more copper used with the addition of the cupolas

The Slingsby Turret Caps
Rapid City, South Dakota
(5/11)
First alternative to the steeple cone used for most finial mounts:
A pair of roof caps 2
3.5" W, one made to go over a ridge behind the turret, 16 sided, 14/12 pitch, wood spacer blocks for a metal roof installation, steeple cones for finial support pipes, special square cover columns over steeple cones to fit just under the finials, solid brass masts rod, and a pair of finials: Lancelot style



Cost: $2,060 for both caps, finials, crate, and shipped to SD

The Bardana Gazebo Restoration and New Cupola w/lighting
Lake Oswego
, Oregon (1-2/11)

First full cupola build:
This was built at 5' 9" wide copper clad cupola, 12' wide gazebo copper roof
6/12 pitch w/steeple cone for weathervane support pipe
hidden roof vent under steeple cone w/stainless steel screen

Cost: $10,563 installed
The Svenson Turret Cap
Chautauqua, New York
(12-10)
42" wide + soft scallop tails, 18/12 pitch, 2 part steeple cone for WV support pipe, w/solid brass & stainless steel masts for the large custom hand-made arrow weathervane w/3-D crow figure

Cost: $2,775 w/cap, WV, crate, & shipped to NY
The Jensen Gazebo Cap
Bethesda, Maryland
(12-11)
The Birger Gazebo Cap
Collinsville, Illinois
(9-10)
First 16 apposing bends cap
made for a wood shake roof

8 sided
23" wide
8/12 pitch
right angle diamond tails

Orphan Roof Cap

Cost: $315 delivered

First reverse soft scallop raised corner cap
8 sided, 35" wide
8/12 pitch, soft slope cone
finial support pipe, solid brass masts rod
Merlin style finial


Orphan Roof Cap

Cost: $1,231.30 for cap & finial w/client pick up

The Entrikin Turret Cap
Seattle, Washington (4/09)

The Davey Turret Cap
Oceanside, Oregon
(8-08)

First 10 sided cap
27" wide + full scallop tails
16/12 pitch w/steeple cones
for finial support pipes
solid brass masts rod
22" x 8" wide Avalon style finial


Cost: $687 for cap & finial
Client pick up

First 11 sided cap
36" wide, 8/12 pitch w/steeple cone
for finial support pipe, solid brass masts rod
roof vent spacer blocks w/SS screen
39" Gwain style finial

Cost: $1,283.40 for cap & finial
Client pick up

The Jessum Turret Caps
S
ammamish, Washington
(5-08)

The Ober Turret Cap
Portland, Oregon (10/07)

First 12 sided cap
35" wide + soft scallop tails
24/12 pitch w/steeple cones
for finial support pipes
solid brass masts rod
roof vent spacer blocks w/SS screen
39" Fluer De Lis finial

Cost: $1,304.25 w/finial
Client picked up
(saved $80+ for more copper used than quoted)

First cap with octagon style tails

36" wide w/octagon tails
1
2/12 pitch w/steeple cone
for finial support pipe
solid brass masts rod
hidden vent spacer blocks
w/copper screening
39" Fluer De Lis finial

Cost: $1,013 w/finial
Client picked up

The Huntoon Lumber Co.
Marlette, Michigan (8/07)
www.huntoon.doitbest.com

The Rhoe Gazebo Cap & Flashing
Chicago, Illinois (8/07)
First hemispherical cupola roof
30" wide
8 sided

Cost: $470.25 w/crate, & shipping
(10% off for all info in 1st e-mail)

Unusual flashing kit w/no support pipe
33.5" wide top cap
Hexagon cap w/6/12 pitch
6" tall lower flashing kit

Cost: $614.25 w/crate, & shipping

The Bourgette Gazebo Cap
Ludington, Minnesota (3/07)
The Rosen Post Caps
Los Angeles
, California (1/07)
First lighted gazebo cap

25" wide + spikes hexagon cap,
5/12 pitch w/12/12 pitch light cap,
double walled tinted polycarbonate
column w/electrical hardware inside

Cost: $442.50 w/crate, & shipping
(10% off for all info in 1st e-mail)

First 4 sided 6x6 post caps
14 piece order
6.25" wide
8/12 pitch

Cost $310 w/crate, & shipping

The Solenick Gazebo Cap
White Plains, New York (1-07)

The Bogaards Turret Caps
Bridgeport, Alabama
(3-07)

First 4 sided gazebo cap
1/6 the roof size
 20" wide, 8/12 pitch

Cost: $180 w/crate, & shipping
(10% discount for good initial info)

First maple w/oak leaf alternating tails
plus dangling oversized acorns
36" & 30" wide
18/12 & 32/12 pitch w/steeple cone
for finial support pipe
solid brass masts rod
hidden vent spacer blocks
w/copper screening

Cost: $2,526.30 w/crate, & shipping

The Karpel Turret Roof Caps
St. Louis, Missouri (10-06)

The upper turret was not uniform and required a roof cap with 3 different sized templates

Cost: $2,544 w/crate, & shipping.

The Best Buy Signs Column Post Caps
North Charleston, South Carolina (5-06)

First 4 sided post caps w/under side reduction rim
18" wide square with a 6/12 pitch

Cost: $225 for both w/crate, & shipping

The Earp Playhouse Turret Caps
Phoenix, Arizona (2/06)

The Lane Turret Cap
Saint Johns, Indiana (10-05)

First small 16 sided caps
w/1/2" finial support pipe
flag, pole, and crown

14" & 9.5" wide w/scallop tails
20/12 pitch

Cost: $381.30 w/crate, & shipping

First 4 sided turret cap
w/double soft-scallop tails

28" wide, 24/12 pitch

Cost: $507.50 w/crate, & shipping
(10% discount for good initial info)

The Ware Gazebo Cap
Ashland, Oregon (9/05)

The Grace Turret Cap
Deltona, Florida (4-05)

First cap with leaf style tails
24" wide + leaf tails,
24/12 pitch

Cost: $200 minimum charge
Discounted cost for good info
and innovative design idea.
Client picked up

First 7 sided cap

36" wide + spiked corners

14/12 pitch w/steeple cones

Cost: $437.50  w/crate, & shipping

The Knuth Turret Cap
Chicago Illinois (4/05)
The Cross Turret  Caps
Baltimore, Maryland (11/04)
What more can I say? Just look at it.
13" wide
top cap
20" wide middle ring
27" wide bottom ring
24" inside width base
36" tall 42/12 pitch

Cost: $700 w/crate, & shipping
8 sided, 32" wide stainless steel caps,
20/12 pitch for a turret,
& a 14" wide 4 sided cap,
24/12 pitch for the cupola

The small cap was only $100.
Cost: $807.50 for both caps php.

The Bower Turret Caps
Elizabethtown, Kentucky (8/04)

The Szakacsy Turret Cap
Moorpark, California (7-04)

First client designed tails
24" wide w/tails, 14/12 pitch base
w/ a 32/12 pitch w/steeple cone
for
sealed weathervane support pipe

Cost: $300 each w/crate, & shipping

First vented roof cap w/support pipe

30" wide cap,
18/12 pitch
,
w/internal vent w/steeple cone
for
weathervane support pipe

Cost: $500 client picked up

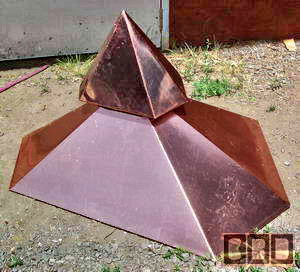

The Masco Gazebo Cap
Middletown, New Jersey (6/04)

The Sean Gazebo Cap
Eastern Washington (9/03)

First custom multi angle 5 sided cap
w/center vent

Cost: $650 w/crate, & shipping

First raised corner cap w/center vent

43" wide
4/12 pitch w/8/12 pitch top cap

Cost: $350 client pick up

The Jabusch Gazebo Roof
Kelso, Washington (7-05)
The Warkentin Gazebo Roof
Banks, Oregon
(3-99)

First 2 tier copper covered gazebo roof
6/12 pitch lower roof,
16/12 pitch upper roof,
curved center cap
w/weathervane support pipe

Cost: $3,100 installed for the
205 sq' of copper used

First copper covered gazebo roof

12' wide
4 tier graduating angles
corner caps on lower 3 tiers
w/gutters

Cost: $2,730 w/some wood work,
& copper gutters w/a downspout

.
