Below are a few more examples of custom copper sheet metal chimney caps that I've made; placing primary focus on strong design w/as few seams as possible. There is also a link to see more photos and descriptions w/prices they had paid; to help give you ideas of what to request a personalized quote for. |
|
|
|
This client
Jon Holt had us build them a custom copper chimney cap for
their house. It also has a finial/weathervane mount built
into the roof. He also wanted these 390 copper domes added
to the roof edge and base skirt. This weighs 320#. The cost for this was
$9,723.58 total installed. The crane cost was only
$360 for their 2 hour minimum charge, since this only took
them 15 minutes.
  Follow this
link to see all 81 photos from this project: |
|
|
|
This
client had us build our first cypress swoop style copper
chimney cap. This was for Rosa and Felix Landry of Abita
Springs, Louisianna. The inside base is 37.5" x 60.5".
They also wanted these bird figures to be removable, while
being able to withstanding near hurricane wind forces, which
greatly increased the complexity of this design and
fabrication, but we are up for challenges like this.
 Hidden inside the wings we have a curved 3/4" and a 1.5" copper pipe run through the torso for support, and they are clad with 2 layers of a thicker 32oz copper for better strength. This weighs 393.1# in all. The cost for this was $18,000 total delivered.
Cost
Breakdown: Follow this
link to see all 179 photos from this project: |
|
|
 This client had us build her our first Tuscany 12 arch style copper chimney cap. This was for Jenny Larsen in Towson Maryland (inside base: 42" x 82.5") with a 6/12 pitch roof cover that is the same width as the base. This weighs 282.6#. The cost for this was $8,959.79 total delivered.
Cost
Breakdown: CBD facebook photo album to see all 45 photos |
|
|
|
This client
Nick & Nikita Barai/Goyal Iselin, New Jersey had us build them a
custom copper chimney cap for their backyard fireplace. This
weighs 171#. The cost for this was $5,484.70 total delivered.

Cost breakdown: |
|
|
 This client in Cody Wyoming had us build them this custom copper chimney cap that resembles the roof style of their house with a 9/12 pitch roof cover. It also was made with a single removable screen panel for access to cleaning out ash build up. This weighs 305#. The cost for this was $7,791.45 total delivered.
Cost
Breakdown: CBD facebook photo album to see all 78 photos
|
|
|
This client
Patrick Costello in St. Paul Minnesota had us build them a
custom copper chimney cap that resembles the monolith style
Kensigton/Davis look with a steeper 8/12 pitch roof cover. This
weighs 140#. The cost for this was $3,966.04 total delivered.
Cost breakdown: CBD facebook photo album to see all 63 images from this project |
|
|
 This 3 piece project was for Thomas J. Hudak, Jr. in Norfolk Virginia for their stately home they had been carefully restoring. These were originally quoted to cost $6.5k each delivered. Although, in this case a few design modifications were made after that, so the cost was based on the actual weight of the copper once completed, which made these $7.7k each delivered, for a total cost of $23.2k for this 3 piece project.   Cost: $23,217.71 delivered to Norfolk, Virginia
Cost breakdown:
Here is a photo copy of the nice letter Thomas had included with the
flash-drive he mailed to me that had all these install photos to
share with you. Follow this
link to see all 205 photos from this project: |
|
|
This chimney cap project is custom designed and made for Robert Miley in Avcon Conneticut for
their backyard fireplace.
Here is a side-by-side comparison of
the lamp we were contracted to emulate. How do you thiunk we
did? Hopefully they like this even better with the more 3D look
of the cross bracing overf the spark arrest screen; without looking too
different. Cost: $4,518.50 delivered to Avon, Conneticut $420 per ln'. Final weight 121.6# (base ISD: 27.5" X 35.5", or covers 6.8 sq')
Cost breakdown:
From:
Miley,Robert A <RMILEY@travelers.c*m>
Sent: Thursday, January 31, 2019 Subject: Re: Miley Lantern Style Chimney Cap
David:
I just wanted to let you know that the chimney cap did arrive (last Friday). I have not yet installed it (we had snow on the ground when it arrived and got another 6 inches yesterday so it may be a little bit), but I did open the crate and take it out. It is better than I hoped. You did a terrific job. I will definitely send you pictures once it goes up, but in the interim I wanted to make sure you knew I received it, and how pleased I am with the result. I showed it to some friends while it was out of the crate (I have since put it back in so it is still brand new when I finally am able to install it), and they said “wow, that looks awesome – it really matches your lanterns” (I had not told them that the inspiration for the design was the lanterns. You nailed it. Thanks very much. Bob Mileys Sent: Saturday, May 4, 2019 Put up the chimney cap! Had snow on the ground until mid March, then rain every weekend. Looks and fits great. Thanks very much. Very happy with how it came out. Click on this image to see all 50 fabrication and installation photos:  |
|
|
 This chimney cap project
was custom designed and made to
go over their
backyard fireplace for Craig & Kimbery Boretsky in Azle, Texas.
The inside measure of this base skirt is 35.5" X 44.5". This is our Tuscany arch style w/double tier base and a 10/12 hipped roof. They wanted a squared off trim around the corner columns. The roof is 3" wider than the base on each side. I had also provided them with a copper dome gazebo roof peak cap to top off their 4 sided gazebo next to the fireplace. Cost: $5,801.39 delivered to Azle, Texas $371 per ln', or $29 per pound + crate and freight. Final weight 203.6# Follow this
link to see all 58 photos from this project: |
|
|
|
This was made for Mark and Katie Rumer. Designed with an
extra wide 6" eave past the base on all 4 sides made in a
fairly plain style that was based on the Fultz project they
liked, which I had done back in 2006. This has a 5/12 pitch
roof top to match their house roof. The spark arrest screen
needed to be rather tall to accomodate their flue dampers
inside this.

(base ISD:
20.5" X 52.5"/7.47 sq')
Cost breakdown: Cost: $3,603 installed Follow this
link to see all 69 photos from this project: |
|
|
|
We were rather jazzed to be working this amazing backyard chimney cap project with a tapered base skirt, which is a combination of several of our chimney cap design features. This has a 44" X 76" wide base at the bottom edges, with a 54" X 85" roof size made for Dr. Adam Andrews in Columbia Missouri. This is a Greek column style, Tuscan arch, concave standing seam hipped roof w/a weathervane support & Landing Duck weathervane.
Cost breakdown for each part: Cost: $13,680.60 delivered Follow this
link to see all 125 photos from this project: |
Wick's
Copper Flue Weather-head Cap
Cost breakdown for each part:
Cost: $2,309 delivered in 3 boxes Follow this
link to see all 39 photos from this project:
..
Alma,
Colorado
(3/18)
Jill Wick of
Alma Colorado asked us to figure out a better looking cover for
their plain flue pipe protruding up out of the front roof, so
here is what we came up with after patiently going over dozens
of options. The cost with crate and freight was $2,309 total.
.
The weights for this project of 48.8# in all. Less 2# for the
weight of the 4.55 sq' of SS screen = 46.8# copper weight. Based
on the same price of $35 per pound that I had originally quoted
them clear back in October 21 of 2013 4.5 years ago:
$721
for the 20.6# of the base piece X $35
+ $378 for the 10.8# of
the flue piece w/2 decorative rings X $35
+ $539 for the
15.4# of the copper in the weather-head piece X $35
+ $91 for
the 4.55 sq' of the stainless steel screen X $20
+ $580 for
the crates, packing, and freight
= $2,309 total delivered.
CBD
facebook
album
Black's
Copper Flue Weather-head Cap
Cost breakdown for each part:
Cost: $14,116.68 delivered in a pair of custom wood crates Follow this
link to see all 141 photos from this project:
.
Skiatook,
Oklahoma
(1-2/18)
This super classy project was
for Kelly and Lisa Black in Skiatook, Oklahoma. They wanted us
to build them a King and Queen combo crown style weather-head.
This was a very interesting project to say the least. style.
437.8# total weight.
.
170.2 # - for the lower base
in 32oz copper with the corner covers and wood
55.8 # - 2' wide X 4' tall mid section
octagon flue with 2 decorative band
199.4 # for the
weather-head and crown details
=
425.4# total weight (w/o
battle axe finial)
-
50.8 # wood weight
-
9.2 # SS screen weight
=
365.4# copper weight
X $28
= $10,231.20
+ $412 for the
156 copper domes installed with another 100 spare domes packed
separately
+ $160 for the 8 brass knobs for the tips of the
King spires with 8 PVD brass knobs sent separately
+ $600 for
custom
3D Battle Axe finial
+ $125 for the finial support
pipe build
+ $241 for 16 ln' of 5/4X6 ipe hardwood,
+
$104 for 8 ln' of 1X6 ipe hardwood split in half for 16 ln',
+ $240 for the 12 sq' of SS screen X $20,
= $12,113.20 sub
total for this chimney caps w/o crates and freight,
+ $900
for 2 custom crates: $300 + $600,
+ $1,103.48 truck freight
to residential w/liftgate service for these 2 crates,
=
$14,116.68 total for the chimney cap delivered
CBD
facebook
album
Gustafson's
Copper Weather-head Cap
45.9# total weight (w/o the spacer)
Cost: $1,800 delivered in a custom wood crate Follow this
link to see all 21 photos from this project:
.
Kansas
City, Missouri
(2/18)
This cute project was
for their back patio fireplace flue liner weather-head made for
Craig & Susan in Kansas City, MO. This is a simplified Tuscany
arch style cover with a few improvements from my previous
designs: tapered eave with hidden rivets in the corners, and I
made a copper covered wood spacer to form this another 3" wider
than their 13" wide flue liner and make a better attachment
without the risk of cracking their terracotta flue liner, which
was only protruding 2.5" above the top. I also used a thicker
24oz copper for the roof top cover, since there is no internal
bracing.
-
3.4# SS screen weight
-
13.6# wood weight
=
28.9# copper weight
CBD
facebook
album
Kurtz's
Copper Chimney Pots/Cap
Cost Breakdown:
Larger 3 flue chimney
Cost: $21,217.49 delivered Follow this
link to see all 132 photos from this project:
...
Incline Village, Nevada
(10-12/17)

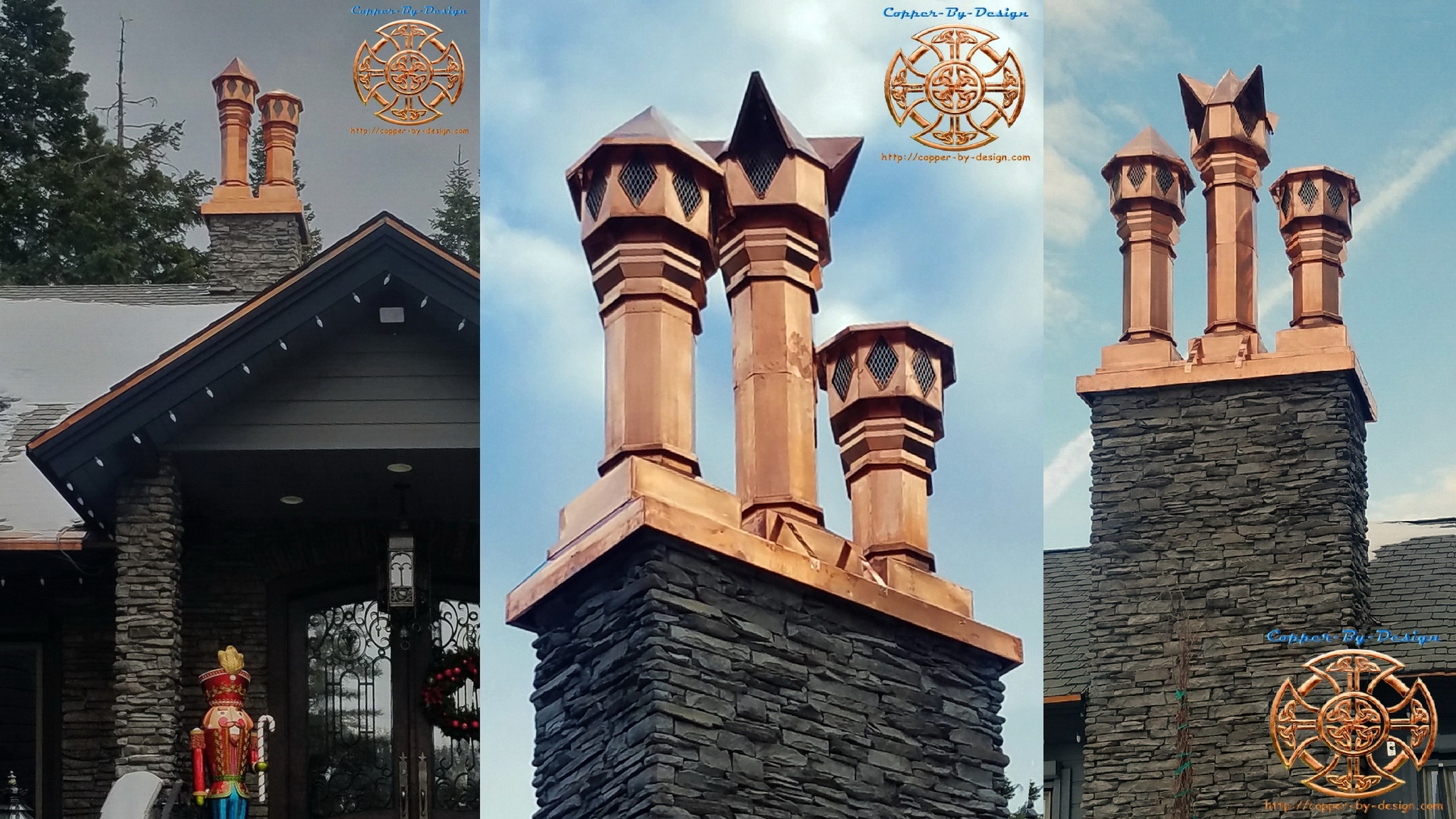

This 5 flue Chimney pot
project is for a Client in Incline Village just outside Lake
Tahoe, Nevada. They are made to resemble a unique project I had
done back in 2004 for a local client. Although, this project is
substantially larger and had numerous improvements on that original
design. They opted to have the heights vary and the shortest
stacks had a lower pitch cone.
272.5# main base with 4'
flues
+ 72.91# for all 3 of the 24oz copper extension flues w/20oz copper trim
work
+
52.2#
for the center
weather-head
+ 78.2#
for the 2 outer
weather-heads
= 475.81# total weight
of large chimney cap
-
19.2# SS screen weight
-
63.6# wood weight
= 393.01# copper weight
X $28
= $11,004.28
copper cost
Smaller 2 flue chimney
189.35#
main base with flues, 2' flue extension,
and trim
+ 49.2#
for the pair of
weather-heads
= 238.55# total weight
of large chimney cap
-
7.8# SS screen weight
-
39.2# wood weight
= 191.55# copper weight
X $28
= $5,363.40
copper cost
$5,363.40 -
2 flue chimney
+ $11,004.28 - 3
flue chimney
+ $608 for 38 ln' of 5/4X6 ipe hardwood
+ $180 for
12 ln' of 1X6 ipe hardwood split in half for 24 ln'
+ $795.80
for the 39.79 sq' of
SS screen X $20
= $17,951.48 sub total for these chimney caps w/o
crates and freight
+ $1,800 for 4 custom crates: $300 + $400 + $500 +
$600
+ $1,466.01 truck freight to residential w/liftgate
service for these 4 crates
= $21,217.49 total for these chimney caps
CBD
facebook
album
.
.
|
Back to Chimney Caps page 5 Or on to |
.
|
